Roll-to-Roll Coating Systems (1.6m)
Wide-format vacuum sputtering systems engineered for stable long-run operation and precise tension control across delicate substrates.
System Overview
HTX Roll-to-Roll Coating Systems are designed for wide-format substrates up to 1.6 meters, focusing on transport stability and coating uniformity during extended operation.
The system architecture prioritizes mechanical balance, controlled tension, and repeatable deposition behavior under vacuum environments.

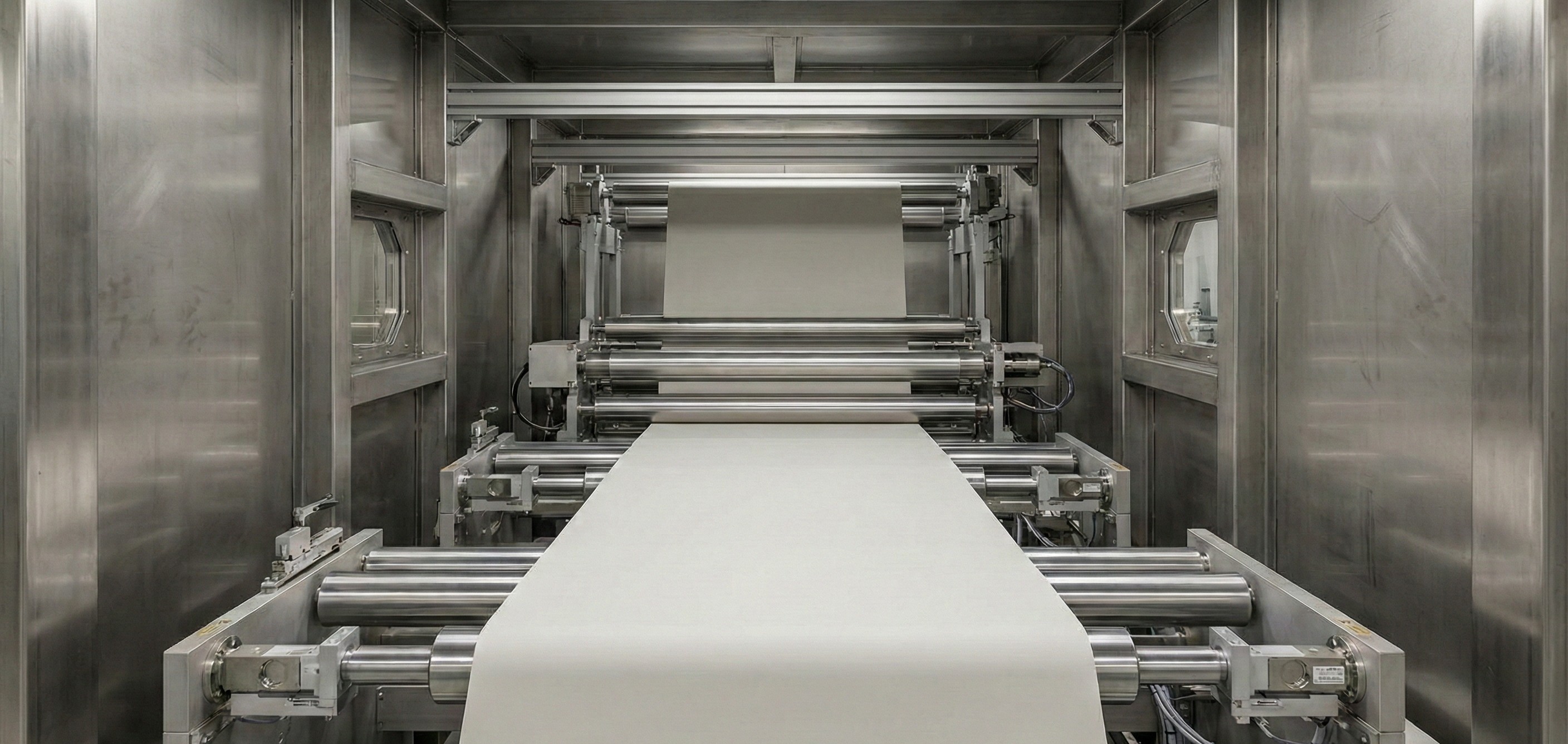

Internal view of the web handling system for 1.6m substrates.
Design Focus
-
Wide-Format Transport Stability:
Mechanical design optimized to maintain alignment and flatness across large-area substrates.
-
Precise Tension Control:
Engineered tension management for thin, flexible, or surface-sensitive materials.
-
Long-Run Operational Reliability:
Designed for extended coating cycles with consistent process behavior.
-
Vacuum Sputtering Integration:
Fully compatible with sputtering-based deposition processes.
Target Material Compatibility
System architecture allows configuration with metallic and oxide-based sputtering targets based on process requirements.
Typical Applications
- Functional textile and fabric coating
- Flexible substrate surface modification
- Large-area material development and pilot-scale production
Start a Technical Discussion
We welcome technical discussions to evaluate feasibility and system suitability.
Email HTX Engineering
If possible, please include:
- Substrate material & width (e.g., PET / Textile, 1.6m)
- Coating purpose
- Target layer structure
